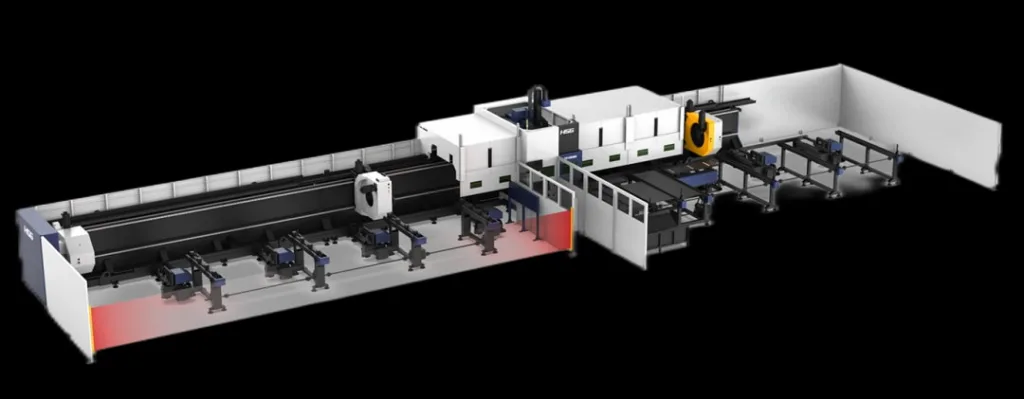

HSG-TX – Powerful and Specialized Laser Cutting Machine for Heavy-Duty Processing of Tubes and Profiles
The HSG-TX is a powerful and specialized laser cutting machine designed for heavy-duty processing of tubes and profiles in demanding industrial applications.
Ideal for companies that need to cut large and heavy materials, it delivers high precision, efficient processing, and advanced automation capabilities to optimize production.
Why Choose the HSG-TX Laser Cutting Machine?
Developed with heavy industry in mind, the HSG-TX can handle tube lengths of up to 12 meters, making it suitable for large-scale processing of robust materials.
The machine is equipped with HSG’s patented 3+1 chuck, which not only provides exceptional stability but also minimizes material waste by reducing the remnant length to 0 mm during straight cuts.
For companies requiring efficient and safe material handling, automation solutions for automatic loading and unloading can also be integrated.
Features and Benefits
Technical Specifications
The HSG-TX offers high performance and precision with a powerful laser ranging from 6,000 to 20,000 W and a rotation speed of 60 rpm.
The machine can reach rapid traverse speeds up to 60 m/min and has an acceleration of 0.6 G, enabling fast and efficient cutting.
Positioning accuracy is ±0.05 mm/m, making it ideal for precision processing of heavy materials.
Patented 3+1 Chuck
One of the most unique features of the HSG-TX is its patented 3+1 chuck, which not only holds the material securely during cutting but also automatically adjusts to straighten the tubes.
This support system eliminates remnant waste and contributes to improved material efficiency and reduced scrap.
Bevel Cutting and Versatile Capacity
The machine supports bevel cutting up to 45°, making it suitable for complex cuts and simplifying subsequent welding operations.
The HSG-TX can handle a wide range of material types and dimensions, from round tubes with diameters of 40–360 mm to square tubes up to 250 × 250 mm, providing excellent flexibility in production.
Advanced Automation and Safety
To improve workflow efficiency, the HSG-TX can be equipped with automation for both loading and unloading, as well as a height monitoring system for safe material handling.
The machine is also equipped with light curtains for additional safety and includes a comprehensive parameter library that simplifies fast material setup.
Autofocus and automatic height adjustment further enhance precision and ease of operation.
Nesting Function
With its built-in nesting function, the TX can further optimize material utilization by arranging cutting paths to reduce waste.
Combined with the ability to save settings in the parameter library, this allows operators to quickly adapt cutting parameters for different materials and projects.
Summary
The HSG-TX laser cutting machine is a robust solution for companies that require a reliable system for heavy-duty processing of tubes and profiles.
With its advanced 3+1 chuck, high cutting precision, and automation capabilities, the HSG-TX is an optimal choice for increasing productivity and ensuring efficient resource utilization in large-scale industrial projects.
