Consumables and Critical Spare Parts

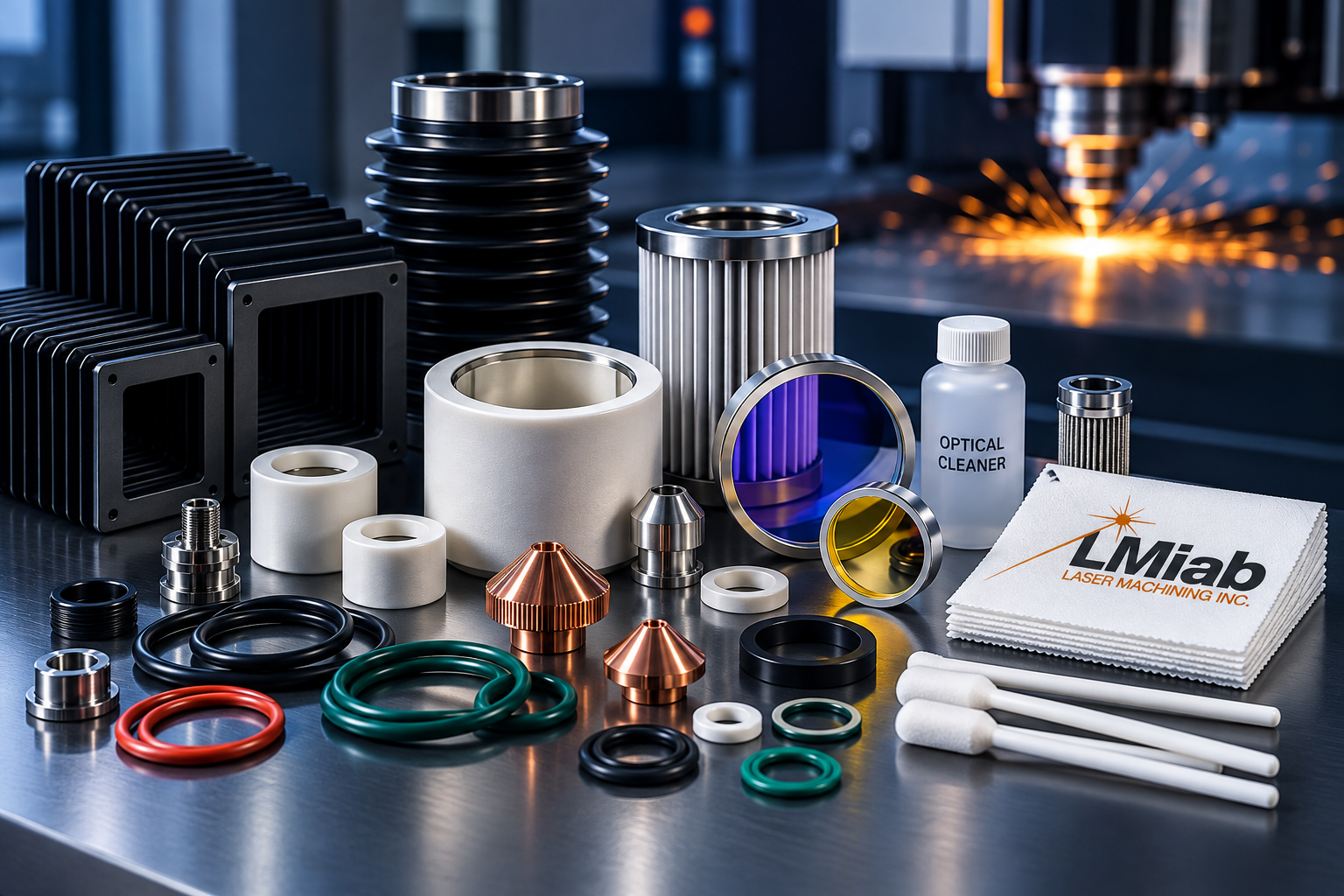

Small components can have a major impact on the performance of a laser system. Ceramic insulators, seals, O-rings, protective bellows, filters and cleaning materials are examples of parts that help maintain a stable process and reduce the risk of unplanned downtime.
LMI offers a wide range of consumables, service components and critical spare parts for industrial laser systems. We can also help identify the correct component when the part number or exact specification is unknown.
Contact us about consumables and spare parts
Small Components with a Major Impact
A modern laser system contains many components that may be relatively simple and inexpensive individually but still play an important role in the reliability of the entire system.
A worn seal, damaged ceramic insulator or contaminated optical component can affect the process and, in some cases, expose significantly more expensive parts of the laser system to damage.
A small and relatively inexpensive component can therefore protect much larger and more expensive parts of the laser system.
Keeping the right consumables available and replacing them when required or according to recommended service intervals is therefore an important part of preventive maintenance.
Ceramic Insulators for Cutting Heads
The ceramic insulator is an important component in many laser cutting heads and is normally positioned between the cutting head and the nozzle. In addition to its mechanical function, the ceramic is part of the capacitive height-sensing system between the nozzle and the workpiece.
Ceramic insulators are subjected to demanding conditions in daily production and can be damaged, for example, by collisions between the cutting head and the material.
A damaged or incorrect ceramic insulator can cause problems with:
- height control
- nozzle position and stability
- process repeatability
- cutting results
- machine availability.
LMI can help identify the correct ceramic insulator based on the cutting head, machine model or existing component.
Seals, Seal Rings and O-Rings
Seals and O-rings are used in many parts of a laser system, including cutting heads, optical units, gas connections, cooling circuits and other service points.
Despite their simple construction, the correct seal can be essential for a component to function as intended.
When replacing a seal, it is important to use the correct:
- dimensions
- material
- temperature resistance
- chemical resistance
- pressure rating
- design for the specific component.
An O-ring or seal should therefore not be selected solely because its dimensions appear to match.
LMI supplies seals, seal rings, O-rings and other service components for different types of laser equipment.
Protective Bellows and Mechanical Protection Components
Bellows and other mechanical protection components are used to protect moving parts, optical beam paths and sensitive components from dust, particles and other influences from the production environment.
Over time, bellows can be affected by mechanical wear, cracking or other damage.
A damaged protective bellow should not be regarded as merely a cosmetic issue. If contamination can enter areas that are normally protected, the result may be increased wear or damage to other components.
LMI can supply protective bellows and other mechanical protection components for the service and maintenance of laser systems.
Filters and Other Service Components
Laser systems also contain a large number of filters and smaller service components that need to be inspected and replaced at regular intervals.
Depending on the system, these may include:
- cooling system filters
- air filters
- filters in ventilation or climate-control systems
- filters and components in gas supply systems
- hoses and connections
- couplings and fittings
- smaller mechanical components.
Regular replacement of filters and other wear parts helps ensure that cooling, airflow and other auxiliary systems continue to operate according to their intended specifications.
Cleaning Materials for Laser Optics
Cleanliness is particularly important when handling laser optics and optical components. Dust, particles, grease or other contamination on an optical surface can affect the laser beam and, at high laser powers, may also cause local heating and optical damage.
LMI can supply suitable materials for optical cleaning, including:
- lens paper and optical cleaning materials
- lint-free cleaning materials
- IPA – isopropyl alcohol
- acetone for applications where its use is specified
- other cleaning fluids and service products
- materials for clean handling of optical components.
The Correct Cleaning Method Is Essential
Not all optical components should be cleaned in the same way.
The choice of cleaning material and cleaning fluid must be appropriate for the optical material, coating, component design and manufacturer’s instructions. An unsuitable cleaning fluid or incorrect mechanical cleaning can permanently damage an optical surface.
Particularly in high-power laser systems, optical components must be handled in a clean environment and according to the correct service procedure.
If there is any uncertainty, we recommend contacting LMI before optical components are cleaned or disassembled.
Preventive Maintenance Reduces the Risk of Downtime
Many faults in industrial laser systems develop gradually. Filters become contaminated, seals age, optical protective components deteriorate and mechanical parts are subjected to wear.
Regular inspections and planned replacement can identify many problems before they result in an unexpected machine stop.
Effective preventive maintenance can contribute to:
- higher machine availability
- more stable process quality
- fewer unplanned production stops
- reduced risk of consequential damage
- longer service life for critical components
- better control of maintenance costs.
Keeping commonly used consumables and critical spare parts in stock can also significantly reduce downtime if a failure does occur.
The Right Spare Part for the Right Laser System
A spare part that looks identical does not necessarily have the same properties.
This is particularly important for components used in cutting heads, optical systems, cooling circuits and other process-critical parts of a laser system. Materials, tolerances, coatings, connections and other technical characteristics can differ between versions.
When ordering, it is therefore useful to provide as much information as possible, for example:
- machine manufacturer and model
- type of laser or laser source
- cutting head or other relevant component
- manufacturer and model designation
- part number
- serial number where relevant
- photograph of the existing component.
With the correct information, LMI can help identify a suitable spare part and reduce the risk of ordering the wrong component.
Optics, Protective Windows and Nozzles
LMI also supplies several common process components and consumables that have their own dedicated product areas on our website.
These include:
Laser Optics
Optical components for guiding, focusing and transmitting the laser beam.
Protective Windows
Optical protection components that help protect more expensive optics, for example inside laser cutting heads.
Nozzles
Process-critical consumables where geometry, centring and condition affect cutting gas flow and cutting results.
Here we can add internal links to the respective existing product pages.
Can’t Find the Spare Part You Need?
Not all spare parts and consumables available from LMI are presented on our website.
LMI supplies a considerably wider range of spare parts and consumables than the products shown online.
If you are looking for a specific component, send us information about the machine, cutting head or other equipment. A part number, model designation or photograph of the existing component will help us identify the correct part.
We can help determine which component is suitable and whether it is available.
Consumables as Part of LMI’s Service Offering
Access to the correct spare parts is an important part of effective service and maintenance.
LMI works with component supply, troubleshooting, service and preventive maintenance of industrial laser systems. This means that we can not only supply a replacement part but also help determine why a component has failed and whether other parts of the system should be inspected.
This is particularly valuable when a recurring component failure is actually a symptom of another problem in the machine or laser process.
Contact LMI about Consumables and Spare Parts
Do you need ceramic insulators, seals, O-rings, protective bellows, filters, cleaning materials or other service components for a laser system?
Contact LMI with as much information as possible about the equipment and the component you are looking for. We will help you identify the correct part and provide information about pricing and availability.
