Lasermet Laser Blocking Roller Blinds
Lasermet Laser Blocking Roller Blinds are specially designed laser safety blinds for windows and glazed areas where laser radiation must be prevented from escaping the controlled laser area.
The blinds provide passive laser guarding for environments using Class 3B and Class 4 lasers. They can be installed over conventional windows or vision panels in doors and are made to measure for the installation.
Laser Protection for Windows and Glazed Areas
Conventional roller blinds and sun-blocking materials are generally not designed to stop laser radiation. Lasermet Laser Blocking Roller Blinds therefore use specially developed laser blocking materials tested for use as laser guards.
The blinds can provide protection against accidental exposure to a laser beam and long-term blocking of laser radiation at lower power densities.
Encapsulated Design

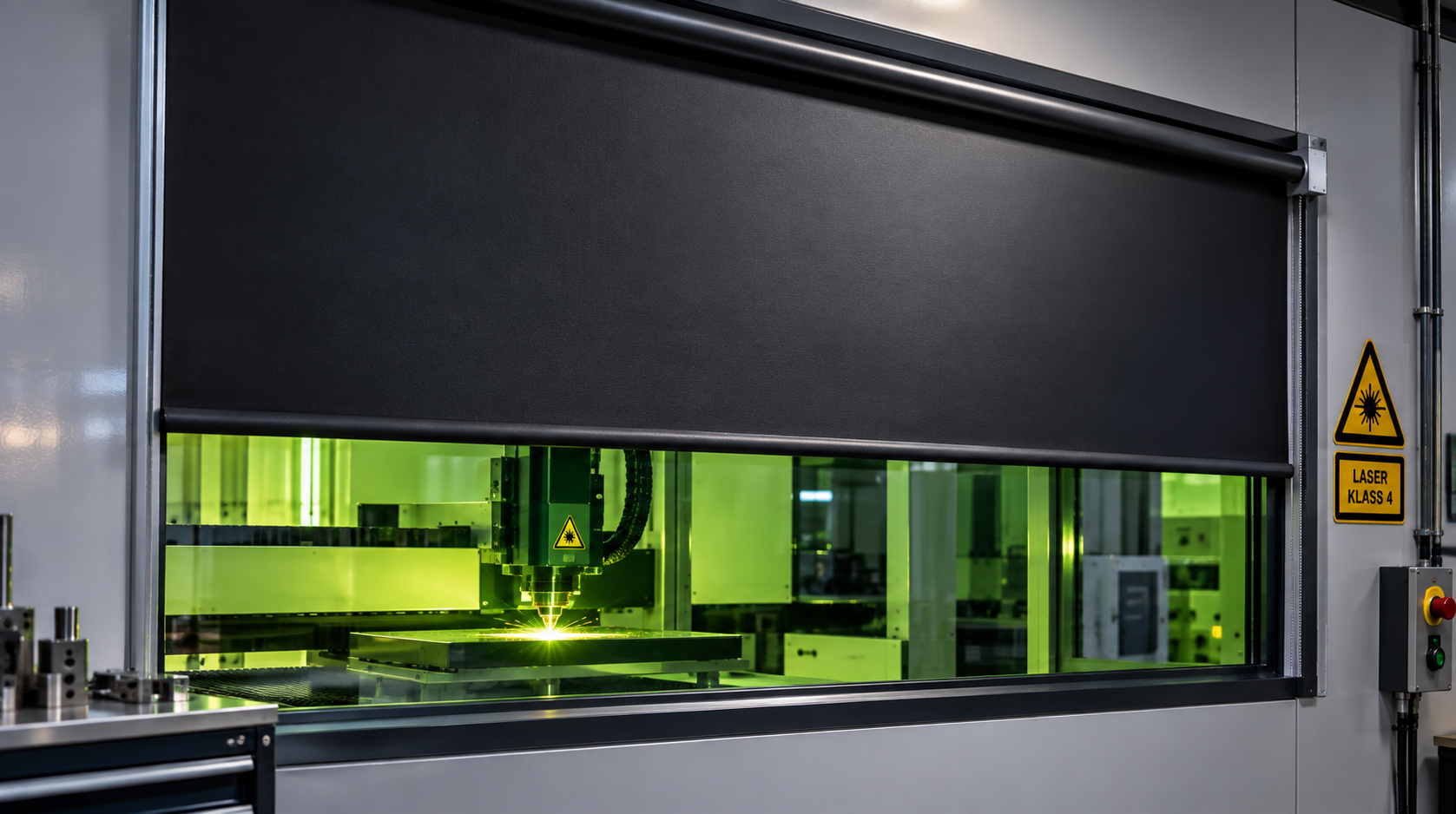

Lasermet’s encapsulated roller blinds are installed within a white-finish aluminium frame enclosing the top, both sides and bottom of the blind.
This construction minimises the possibility of laser radiation passing around the edges of the blind while providing complete light blocking and a neat, integrated installation.
Orca or Wolf Laser Blocking Material
The blinds are available with different laser blocking materials according to the requirements of the installation.
- Orca: high-specification protection suitable for Class 3B and Class 4 lasers. The heavy-duty material is easy to clean and is also suitable for hospitals, cleanrooms and medical environments.
- Wolf: a lower-specification and more cost-effective alternative for certain Class 3B applications, particularly suitable for laboratory and industrial environments.
Lasermet states that both materials conform to BS EN IEC 60825-4 – Safety of Laser Products, Part 4: Laser Guards.
Manual or Motorised Operation
Laser Blocking Roller Blinds are available with several operating options depending on the installation:
- Chain operation
- Crank handle operation
- Motorised operation
- Wireless motor control
- 24 VDC control
Motorised blinds enable opening and closing to be automated and integrated with other laser safety functions.
Interlock Integration
The blinds can be equipped with a Lasermet IS-MDC-12 dual-channel Interlock® switch for integration with a laser safety interlock system.
The interlock system can prevent the laser from being armed while the blind is open. The blind must be closed before hazardous laser operation can be enabled.

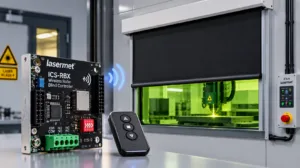

Wireless Control with ICS-RBX
Motorised Laser Blocking Roller Blinds can also be controlled wirelessly using the Lasermet ICS-RBX Wireless Roller Blind Controller. The ICS-RBX is an expansion card for the ICS-9, enabling automatic or remote operation of the blinds.
Protection Performance – Orca
| Irradiated Area | PEL (T3) 10 s | PEL (T2) 100 s |
|---|---|---|
| 4 mm² | 3.9 MW/m² | 2.2 MW/m² |
| 2000 mm² | 0.62 MW/m² | 0.35 MW/m² |
Protection Performance – Wolf
| Irradiated Area | PEL (T3) 10 s | PEL (T2) 100 s |
|---|---|---|
| 4 mm² | 248 kW/m² | 140 kW/m² |
| 2000 mm² | 124 kW/m² | 70 kW/m² |
Made to Measure
Laser Blocking Roller Blinds are made to suit the dimensions of the installation and can be used on both windows and glazed door panels. Surface-mounted and recessed installations are available depending on the application.
Lasermet documentation specifies blinds up to approximately 4 × 4 metres.
Typical Applications
- Industrial laser installations
- Laser laboratories and research facilities
- Hospitals and operating theatres
- Medical laser facilities
- Windows facing laser controlled areas
- Vision panels in laser room doors
Contact LMI AB About Laser Safety Blinds
LMI AB can help you select the appropriate laser safety blind, blocking material, operating method and interlock solution according to the laser characteristics and risk assessment of the installation.
Contact us for advice regarding individual laser blocking blinds or complete laser safety systems.
