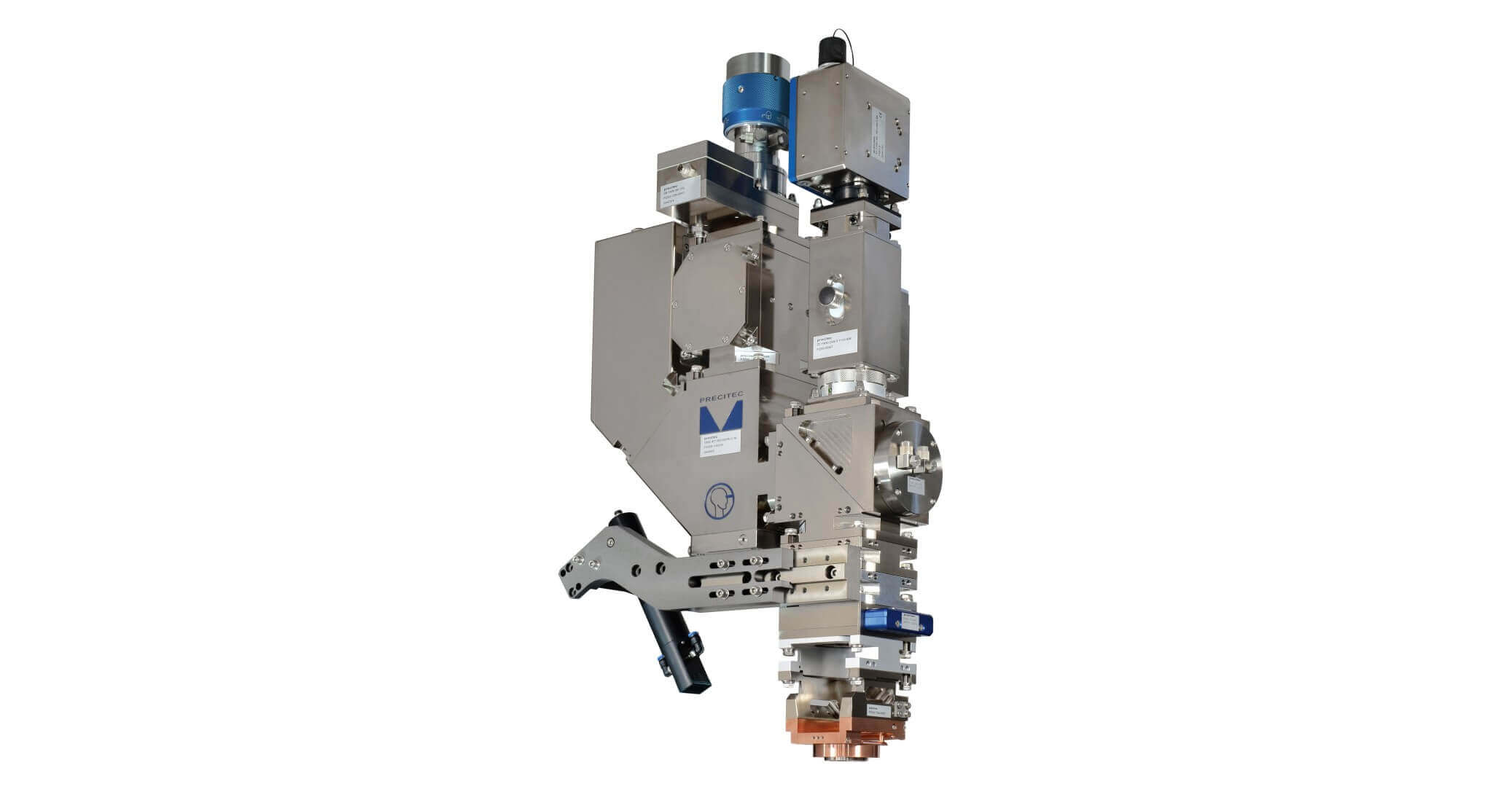

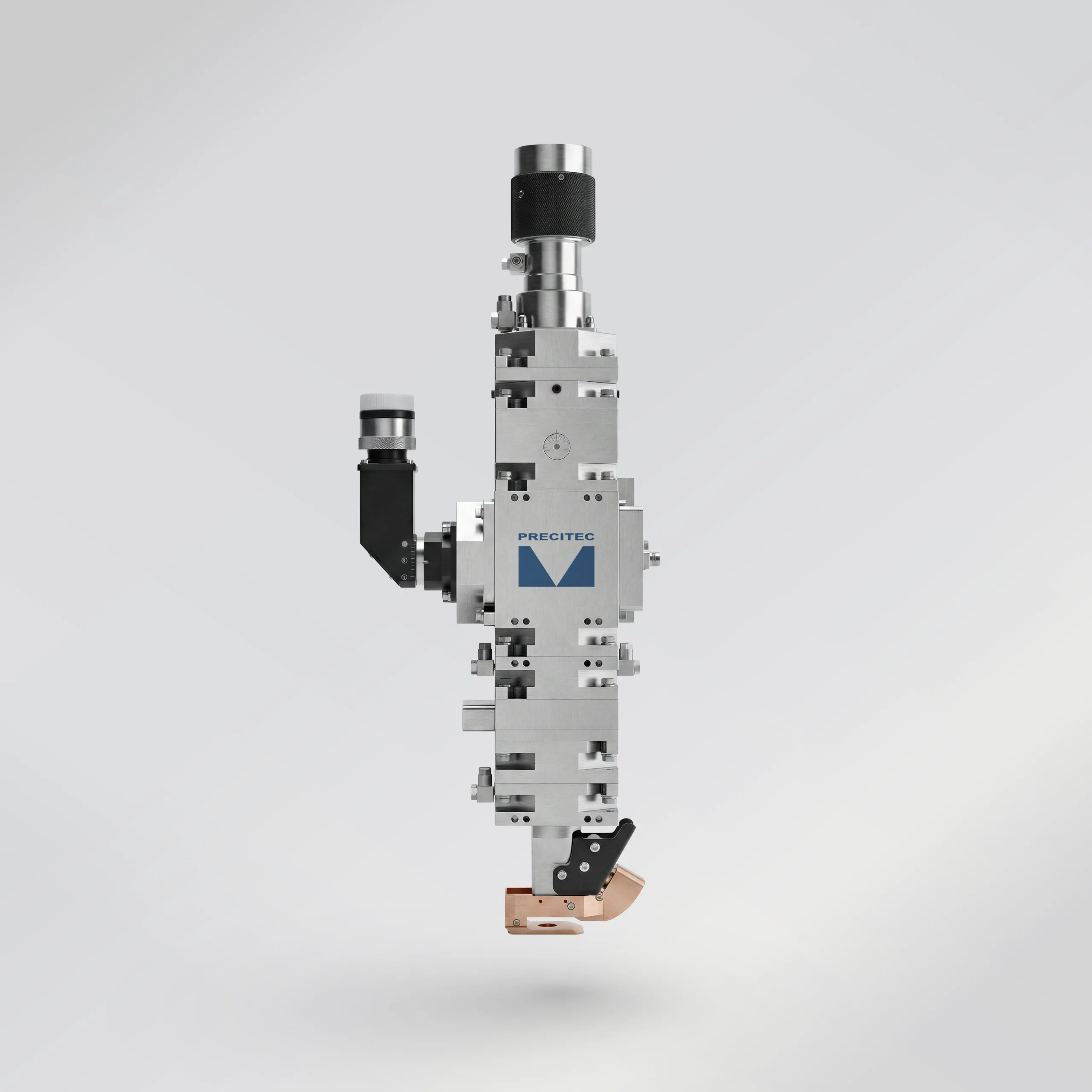

Precitec YW52 Welding Head
Precitec YW52 is a powerful and modular laser processing head for automated laser welding with laser powers up to 20 kW. It is designed for demanding industrial welding processes where high laser power, long working distances and high process stability are key requirements.
The YW52 is configured according to the specific welding application. Optics, working distance, shielding gas, camera and process monitoring can be adapted to the laser system, material, component geometry and process requirements.
For demanding high-power laser welding
The YW52 is designed for automated laser welding processes using diode and solid-state lasers and is particularly suitable for applications requiring high laser power and stable process control.
Its robust design and large optical aperture enable the use of long focusing focal lengths and large working distances. This is an important advantage in automated welding cells where the laser head needs to operate at a safe distance from the component and process zone.

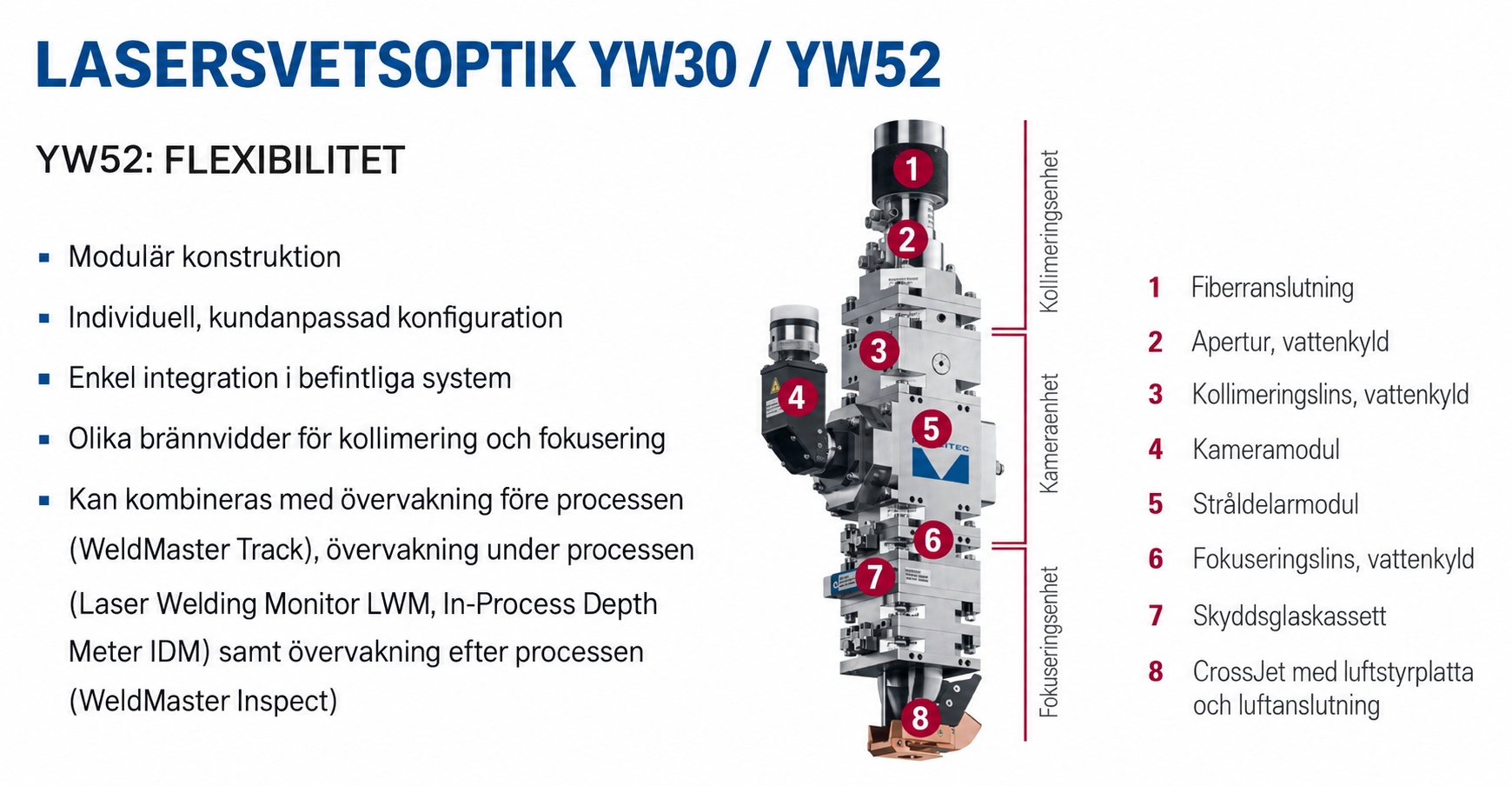

Modular and application-specific
Like the YW30, the YW52 is based on a modular concept. The laser head is specified for the individual application rather than being supplied as a single fixed standard configuration.
Different optical and mechanical components can be combined to adapt the laser head to the laser source, beam quality, working distance, component geometry and welding process.
The configuration can include:
- different collimating and focusing optics
- adapted shielding gas delivery
- camera for setup and process monitoring
- protective windows for the internal optics
- CrossJet for protection against process-related particles and spatter
- process and quality monitoring systems
Long working distances and flexible optics
The YW52 offers a wide range of collimating and focusing focal lengths. This makes it possible to adapt the beam geometry, spot size and working distance to the specific welding process.
Focusing focal lengths of up to 680 mm enable long working distances, which can be particularly valuable when welding large components and in robotic production systems where accessibility and distance from the process zone are important factors.
Designed for stable series production
In high-power laser welding, the optics are exposed to significant thermal loads while particles and welding spatter can affect the optical components.
The YW52 uses water-cooled optics together with protective windows and Precitec’s CrossJet concept to protect the internal optics and provide stable conditions for continuous industrial operation.
This contributes to reproducible welding results and high process reliability even in high-power applications and demanding production environments.
Process monitoring and quality assurance
The YW52 can be combined with various process monitoring systems. This makes it possible to monitor the welding process and integrate additional quality assurance functions into automated production systems.
The appropriate monitoring solution depends on the application and can be adapted to requirements such as joint position, weld depth, process stability and inspection of the completed weld.
Integration with robots and automation
The YW52 is designed for automated production environments and can be integrated with industrial robots, linear axes and customised machine systems.
The long working distance and the ability to adapt the optical configuration make the laser head suitable for both large components and complex welding geometries.
LMI AB can integrate the laser head together with the laser source, robot or other motion system, fixturing, control system and process monitoring as part of a complete automated laser welding solution.
Typical applications
The YW52 is designed for demanding industrial welding applications and can be used in areas including:
- automotive and component manufacturing
- machine and equipment manufacturing
- welding of large and complex components
- heavy industry and steel fabrication
- energy and infrastructure-related manufacturing
- robotic high-power laser welding
- automated series production with high quality requirements
Advantages of Precitec YW52
- laser power up to 20 kW
- designed for demanding high-power laser welding
- modular and application-specific configuration
- large optical aperture
- long working distances
- wide range of collimating and focusing optics
- water-cooled optics
- protective windows and CrossJet for optical protection
- camera and process monitoring options
- suitable for robotic and automated welding systems
- designed for stable and reproducible series production
Technical data
| Manufacturer | Precitec |
| Model | YW52 |
| Application | Automated high-power laser welding |
| Maximum laser power | 20 kW* |
| Collimation focal lengths | 100 / 125 / 150 / 175 / 200 mm |
| Focusing focal lengths | 250 / 300 / 400 / 680 mm |
| Clear aperture | 48 mm |
| Cooling | Water-cooled optics |
*Precitec specifies laser powers up to 20 kW as standard, with higher power available upon request. The YW52 is a modular laser head and the exact configuration is specified according to the laser source, optics, working distance, process and other application requirements.
YW52 as part of a complete welding solution
For high-power laser welding, the laser head must be specified together with the laser source, beam quality, process fiber, material, joint geometry, required working distance, fixturing and automation.
LMI AB supplies Precitec laser heads and can help specify a YW52 configuration adapted to the individual application. LMI AB can also provide optics, protective windows, spare and consumable parts, process monitoring and integration support for complete automated laser welding systems.
Contact LMI AB
Do you need a powerful laser head for automated high-power laser welding? Contact LMI AB and we will help you determine whether the Precitec YW52 is the right solution and specify the laser head for your application.
